Reliable performance
Ø Smart counting mode ensures higher accuracy for low-WBC / PLT samples
Minimal maintenance
Ø Imported key components (Valve: SMC, Pump: KNF, etc.), better stability and lower failure rate
Effortless clinical testing
Ø 9 μL blood/test
Ø Results in 3-step
Ø 24 + 2 parameters + 3 histograms
Compact solution
Ø Built-in 10.4-inch touch screen
Ø Built-in printer

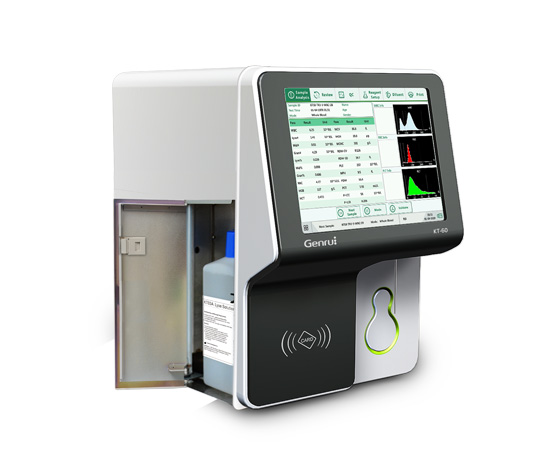

Ø Built-in lyse room
Ø Small footprint: 280×430×400mm, 17.5 kg
Specification
| Throughput: | 60 tests/hour |
| Principle: | Impedance for WBC/RBC/PLT; Colorimetry for HGB |
| Parameters: | 24 reportable parameters + 2 research parameters + 3 histograms |
| Sample volume: | 9μL for whole blood, 20μL for prediluted sample |
| Test modes: | Whole blood, capillary, prediluted, smart counting |
| Operation: | 10.4-inch touch screen |
| Interface: | 4 USB, 1 network port, bi-directional LIS |
| Storage: | 600,000 results |
| Dimension: | 280×430×400mm, 17.5 kg |
| Certification: | CE |
