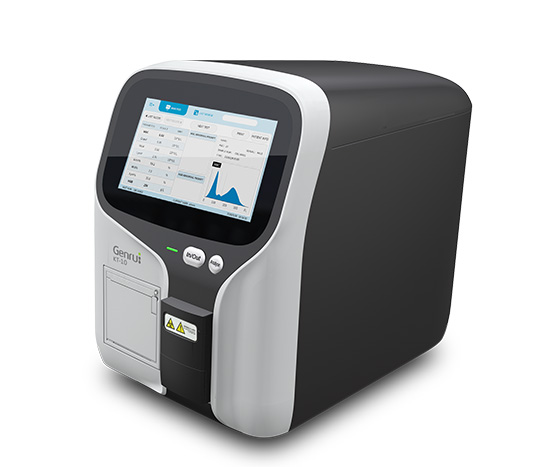

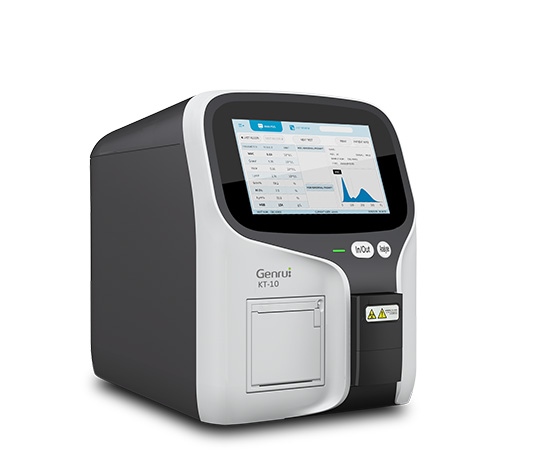

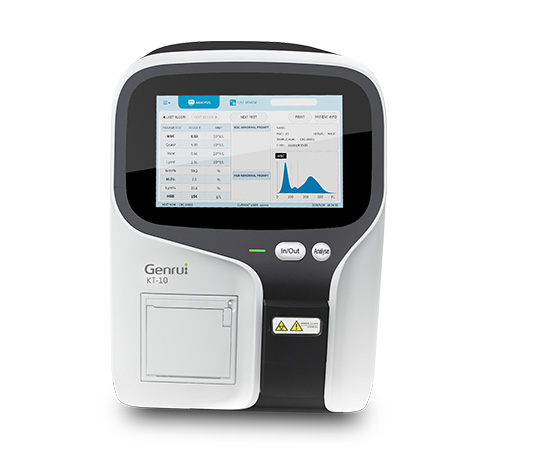

Specification of KT-10 POCT Hematology Analyzer
Principle: Coulter DC impedance detection method, identifying and counting white cells, in Microfluidic chip
Parameters: WBC, LYM #, LYM %, MID #, MID %, GRAN #, GRAN %, HGB
Sample: Capillary or venous (EDTA) whole blood
Sample Volume: 5μL
Measuring Time: ＜ 1 minute
Calibration: Manual calibration
Quality Control: A comprehensive on-board QC package allows optimal monitoring of system performance.
Linear Range: WBC: (0.1 ～ 100.0) ×109/L
Dimensions: W×L×H: 397×242×321 mm
Weight: 10kg
Data management: Data, time, patient ID, lab ID, operator ID, site ID, control ID
Operating conditions: 5 ～ 40 ℃ ，20% ～ 90%，70kPa ～ 106kPa
Power: AC100V ～ 240V, 50/60Hz
Why KT-10 POCT Hematology Analyzer?
Innovative, Ultra-microfluidic cassette, No fluid maintenance
Accurate, Gold standard Coulter principle, Standard QC and calibration
Quick and Easy, 1 second to start up, 30 seconds to result, 5 minutes training time, NO laboratorian needed
Individual test, Disposable one cassette for one test, NO reagent waste, NO liquid maintenance
Professional algorithm, Algorithmic software based on big data in clinical medicine, Backed by thousands of clinical trial data, Intelligent control
Automatic test, Automatic signal collection, One-click print report
