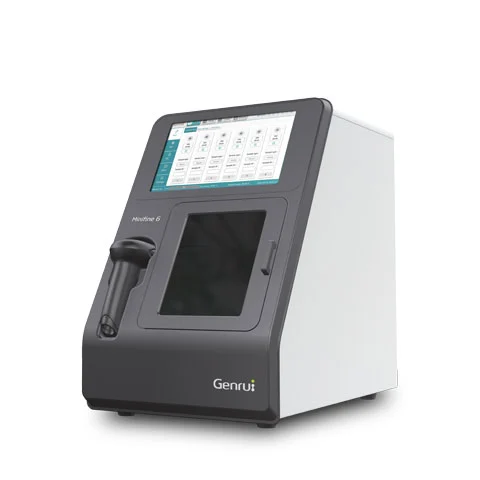

POCT Automatic Chemiluminescence Immunoassay System—Minifine 6

Minifine 6 is a fully automatic POCT chemiluminescence immunoassay (CLIA) system, used for the rapid detection of multiple immune items. The distinctive design of the single reagent cartridge realized one test at one time, avoiding open bottle waste and eliminating cross-contamination, with the ability to determine the trace components in samples accurately by the advanced CLIA technology.


Products

IVD Wiki from Genrui

Specification of POCT Automatic Chemiluminescence Immunoassay System—Minifine 6





General Information

Principle: Chemiluminescence Immunoassay (CLIA)

Substrate: APS-5

Throughput: 36 T/H

Sample type: Whole blood / Serum / Plasma


Analyzer

Display: 10.1- inch colorful touch screen

Storage: >100,000 results

Weight: 35 Kg

Interface: 2 USB ports

Dimension: 305 * 460 * 520 (mm)

Supported connections: LIS/HIS, RS 232/USB port/ WAN

Sample/Reagent position: 6

Sample/Reagent recognition: Built-in / external barcode scanner


Reagent

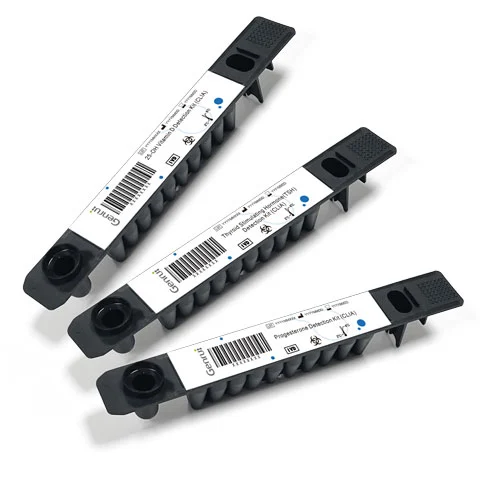

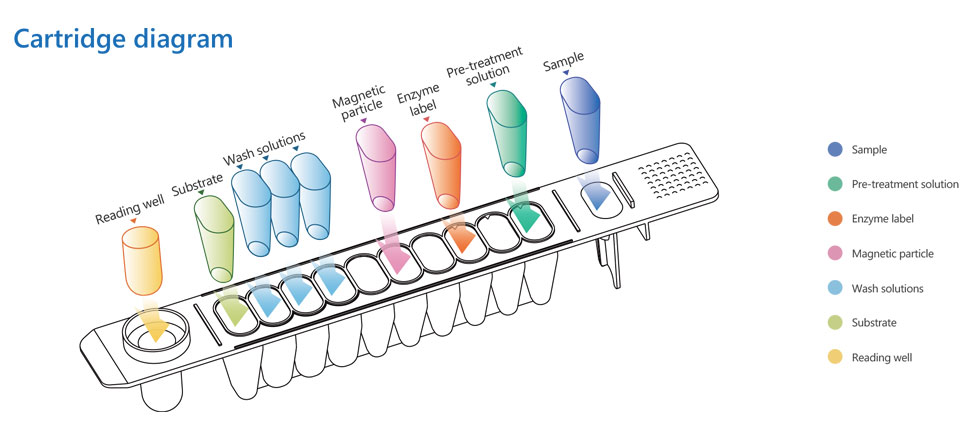

Cartridge: All-in-one single test

Shelf life: 12 months

Turn around time: 15 min

Calibration validity: 4-8 weeks

Package contents: 30/60 tests per kit, calibrator, QC and plastic pipette tips included

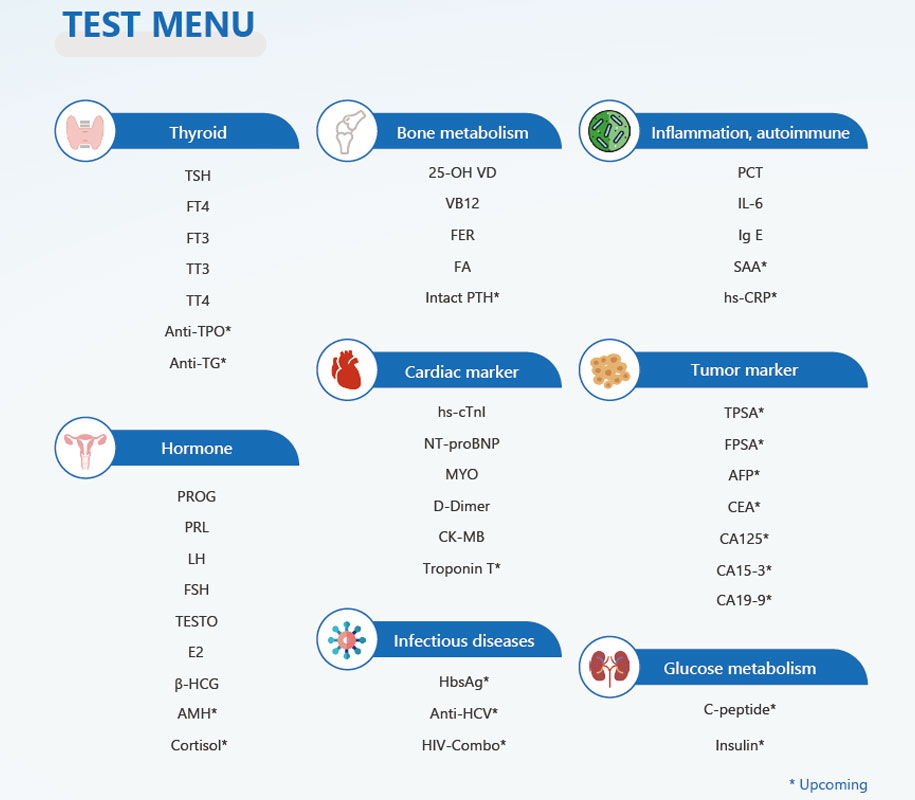

Test Menu of POCT Automatic Chemiluminescence Immunoassay System—Minifine 6
